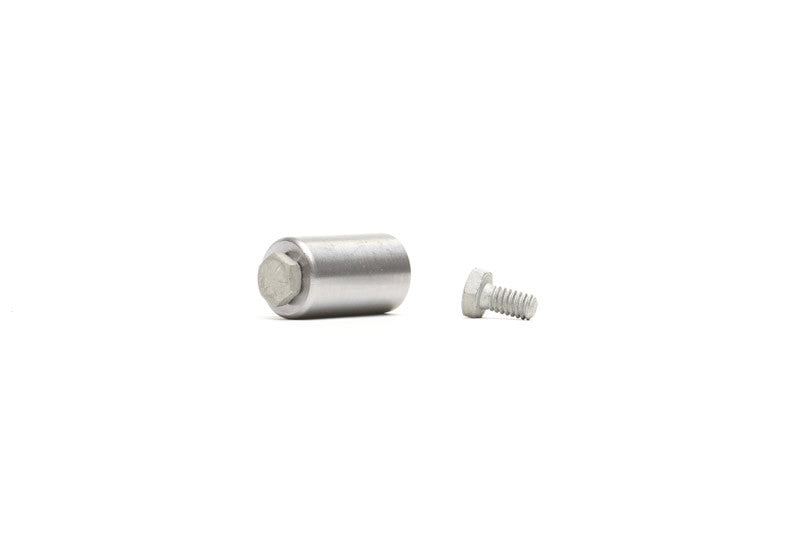

FabBoss 1/4-20"
$4.50

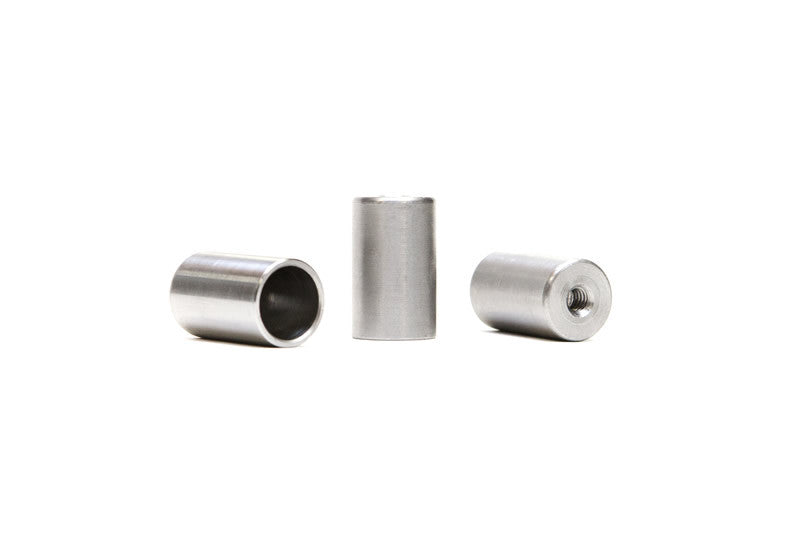

Fab Bosses™ are ideal for mounting electronic boxes, interior panels, fluid reservoirs, cable and plumbing runs, linkage bases, ground points, etc. They are mild steel, with a wall thickness of .060, so MIG welding to sheet metal is a quick operation. They can also be easily trimmed for welding to irregular surfaces, or notched for mounting to tube.
Using FabBosses minimizes the aesthetic problem of protruding bolts or sheet metal screws, and eliminates that old problem of stripped sheet metal screw holes. It also speeds up the fabrication process in another way: bolt the device to a FabBoss, position it in place, and tack weld. Getting your MIG torch into tight places is always easier than a drill.
One other feature is that the face has a rolled radius so they can be left visible in interior panels.
Dimensions: 1.25" in length, 0.75" in diameter, .060 wall thickness.
